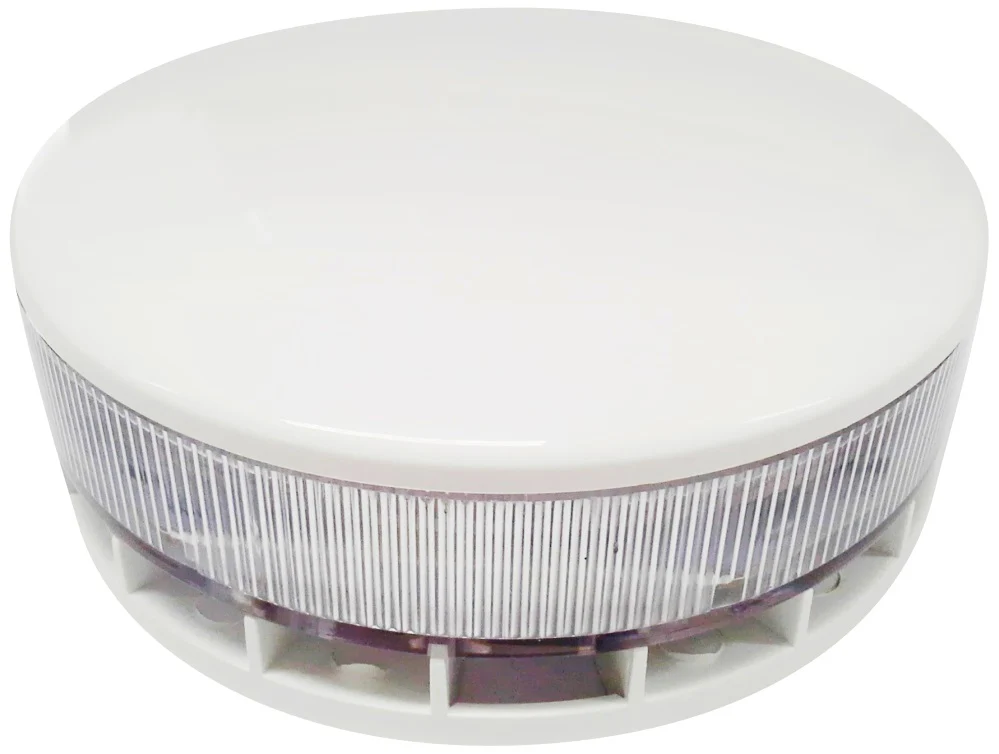

Global Fire Vulcan 2 Addressable Base Beacon with Isolator – (VULCAN2-ABI)

The Global Fire VULCAN2-ABI is a low-profile addressable base beacon with integrated isolator, designed to provide clear visual alarm indication in addressable fire alarm systems. It can be installed alongside a detector or used as a standalone unit, offering flexible installation options across a wide range of applications.

Part of the Vulcan 2 range, this device supports multiple operating configurations including auxiliary and shadow modes, allowing it to share an address with a detector or operate without consuming an additional address. This flexibility helps maximise system capacity while maintaining effective alarm signalling.

The built-in short-circuit isolator improves system reliability by protecting the loop in the event of a fault, while DIP switch addressing allows quick and easy configuration during installation. Designed for use with Global Fire addressable panels, the Vulcan 2 beacon provides dependable performance and efficient visual alerting in commercial and industrial environments.

 Key Features

• Addressable base beacon with built-in isolator
• Can be used with a detector or as a standalone unit
• Supports auxiliary and shadow operating modes
• DIP switch addressing for easy configuration
• Compatible with Global Fire addressable control panels
• Provides visual alarm indication for fire events
• Built-in isolator protects loop integrity during faults
• Up to 64 devices per loop (depending on configuration)
• Loop powered (20–30 V DC)
• Low current consumption for efficient operation
• Adjustable configuration and tone selection via internal settings
• Durable ABS construction for long-term use
• Certified to EN54-3 standard
