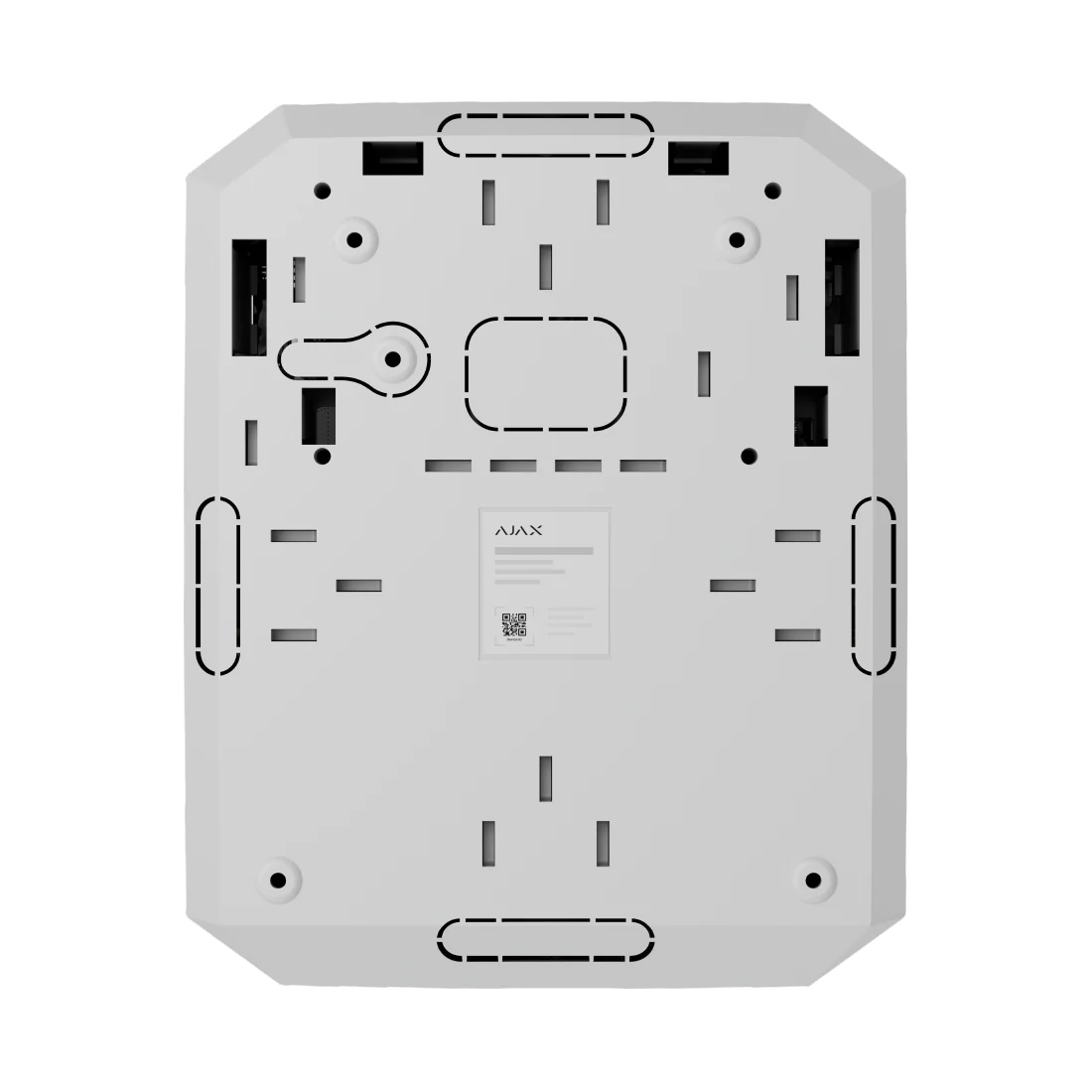

Ajax Superior MultiTransmitter G3 Jeweller White (AJA-160768)

The Ajax Superior MultiTransmitter G3 Jeweller (White) is a professional Grade 3 wireless integration module designed to connect third-party wired devices to an Ajax security system. It allows you to upgrade existing wired installations by bringing them into the Ajax ecosystem without replacing equipment.

The module supports up to 18 wired zones, enabling integration of devices such as motion detectors, door contacts, fire detectors and panic buttons. It ensures that all connected devices can be monitored, controlled and configured directly through the Ajax app, providing a modern and unified security solution.

Using Ajax Superior Jeweller communication, the MultiTransmitter securely transmits alarms, events and faults to the hub with encrypted, long-range wireless connectivity. With built-in power outputs for connected devices and support for backup batteries, it offers a flexible and reliable solution for commercial and high-security installations.

Features:

• Grade 3 wireless integration module
• Connects up to 18 wired devices/zones
• Integrates third-party detectors into Ajax system
• Supports NC, NO, EOL, 2EOL and 3EOL connections
• Enables modernisation of existing wired systems
• Communication via Ajax Jeweller protocol (secure & encrypted)
• Wireless range up to ~2000m+ (open space)
• Built-in power supply outputs (12V) for connected devices
• Supports backup battery operation for continued use during power loss
• Transmits alarm, tamper and fault events from connected devices
• Built-in tamper protection and anti-sabotage features
• Remote configuration and monitoring via Ajax app
