Ajax Superior MegaHub Hybrid Control Panel (Without Casing) – (AJA-160815)

*Fibra can only be activated by engineers who have completed the Ajax Fibra training course*

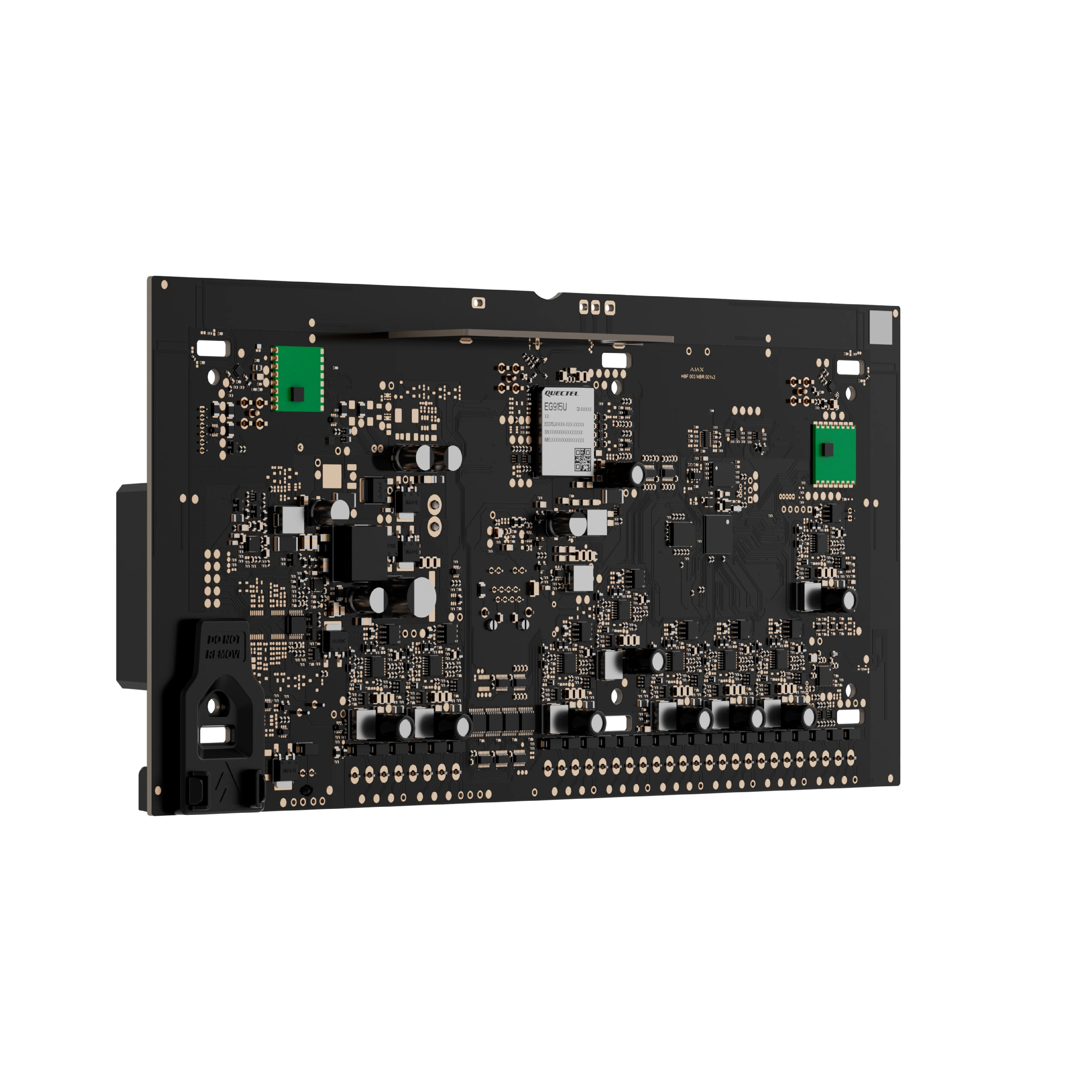

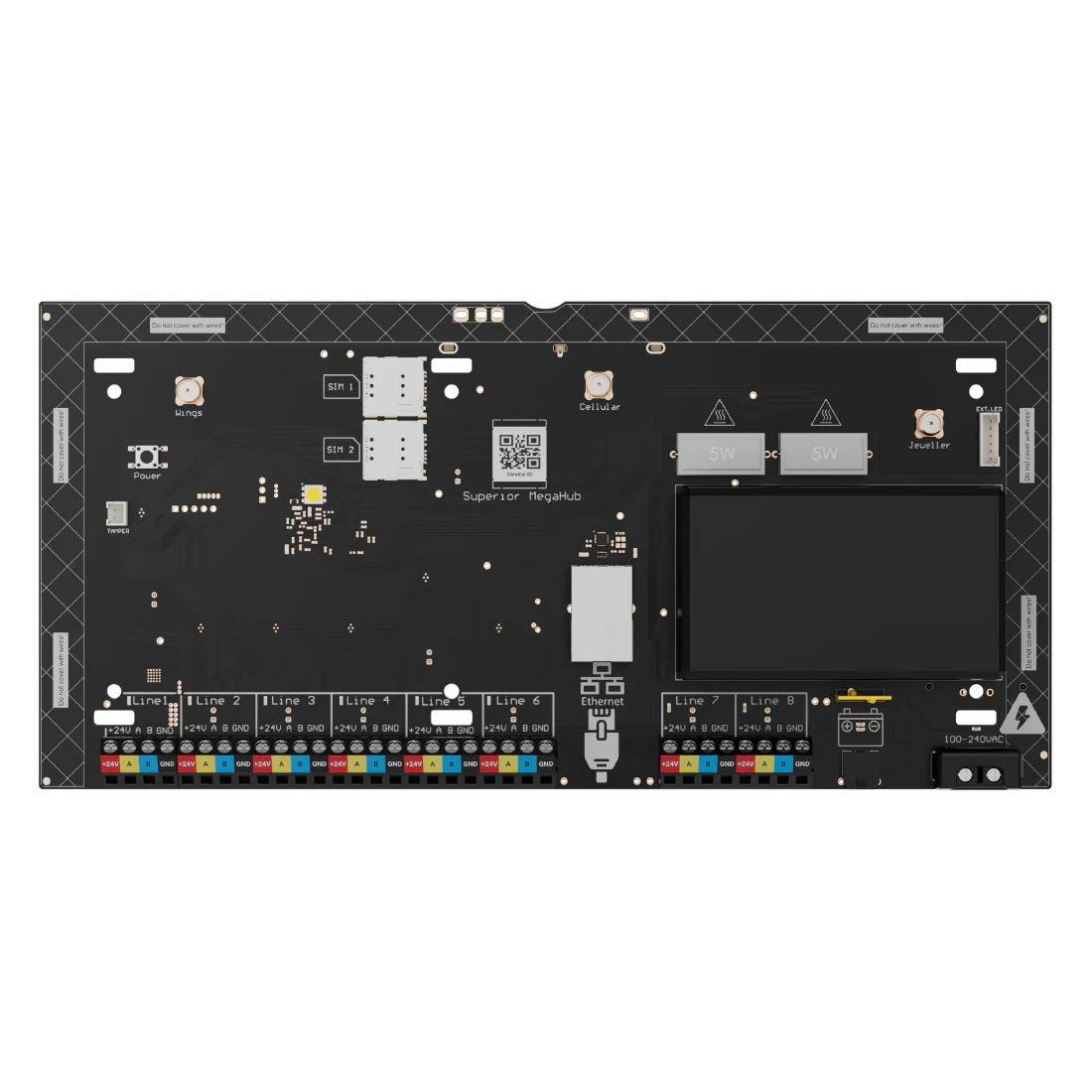

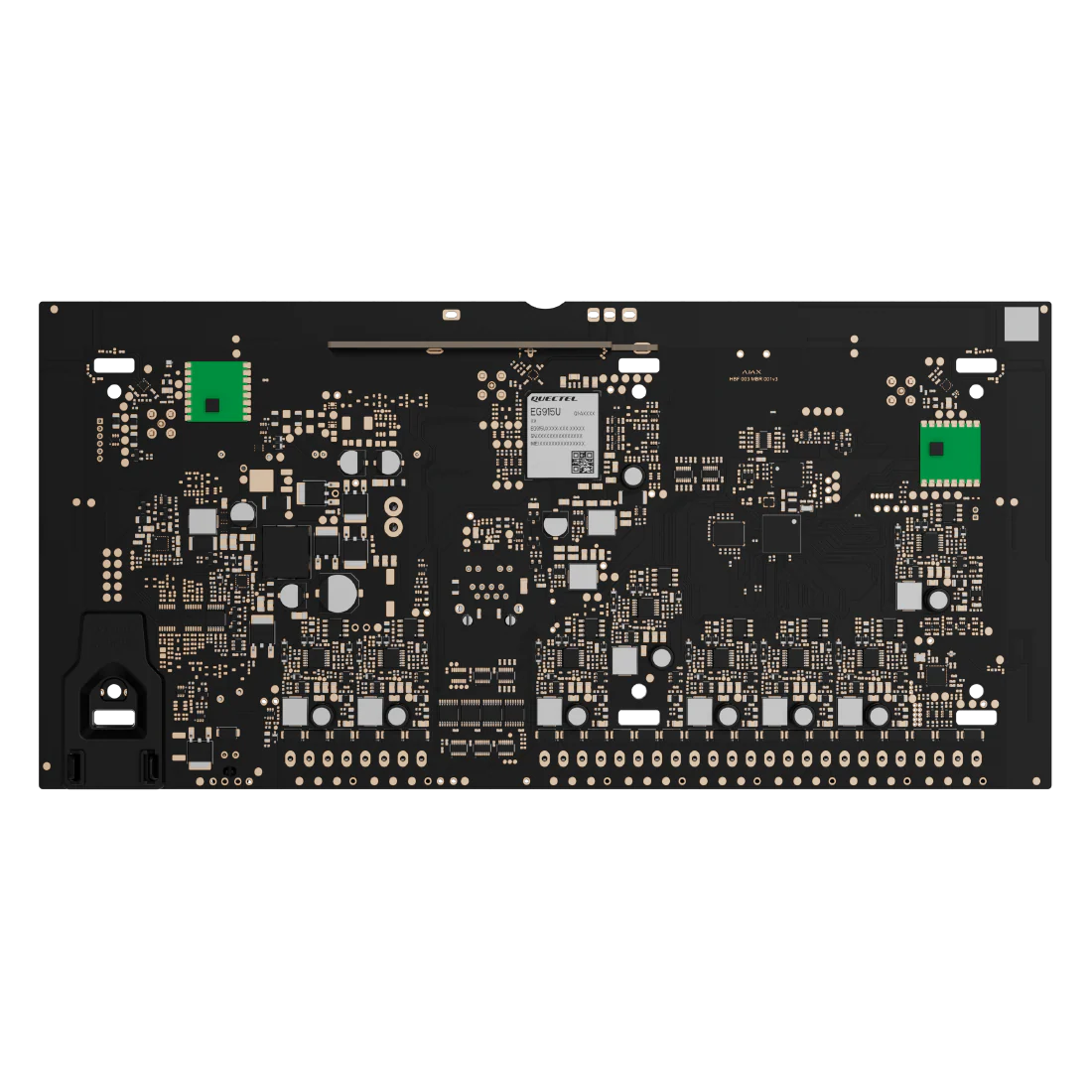

The Ajax Superior MegaHub (Without Casing) is an enterprise-level hybrid security control panel designed for very large and complex installations. Supplied as a board-only unit, it is intended for installation داخل a compatible Ajax enclosure, allowing flexible system design for professional projects.

Combining Fibra wired technology with Superior Jeweller wireless communication, the MegaHub supports a wide range of devices within a single system, delivering reliable, encrypted communication across large sites. With built-in Ethernet, Wi-Fi and dual SIM (2G/LTE) connectivity, it ensures constant system communication with automatic channel switching for maximum reliability.

Designed for high-security environments such as industrial facilities, campuses and multi-building sites, the MegaHub offers powerful scalability, advanced automation and full remote control through Ajax applications.

Features:



• Hybrid control panel supporting Fibra (wired) and Superior Jeweller (wireless) devices
• Supports up to 999 connected devices
• Designed as a board-only unit for installation in Ajax Case enclosures
• Built-in Ethernet, Wi-Fi and dual SIM (2G/LTE) connectivity
• Automatic switching between communication channels for reliability
• Up to 100 security groups and 100 automation scenarios
• Supports up to 1000 users and 500 rooms
• Wired communication via Fibra with up to 8 lines
• Fibra communication range up to 2000 m
• Wireless communication range up to 2000 m (open space)
• Supports ring, tree and radial wiring topologies
• Photo verification support with compatible Ajax detectors
• Advanced anti-sabotage protection including tamper and jamming detection
• Backup battery support with up to 60 hours operation
• Grade 3 certified for high-security installations
